SkyU Kustomize Transformer

SkyU uses a Kustomize transform plugin to add the necessary configurations for the SkyU platform to manage the resources. This plugin is automatically applied to the merged Kubernetes manifests before deploying them to the environment.

The folder structure of the Kustomize plugin is as follows:

|-- kustomize
|   |-- base
|   |   |-- deployment.yaml
|   |-- overlays
|   |   |-- dev
|   |   |   |-- deployment-patch.yaml
|   |   |   |-- skyu-transform.yaml
|   |   |-- staging
|   |   |   |-- deployment-patch.yaml
|   |   |   |-- skyu-transform.yaml
|   |   |-- prod
|   |   |   |-- deployment-patch.yaml
|   |   |   |-- skyu-transform.yaml

Please note that kustomization.yaml is not required in the plugin folder structure. This yaml is automatically generated by SkyU at runtime.

Kustomize File Merge

SkyU uses Kustomize to manage the Kubernetes manifests in the GitOps repository. Kustomize allows you to customize Kubernetes resources through a Kubernetes-style configuration file.

When you create a project in SkyU, SkyU creates a GitOps repository for you. This repository contains the base and overlay folders. The base folder contains the base Kubernetes manifests for your applications and infrastructure. The overlay folders contain the environment-specific configurations for your applications and infrastructure.

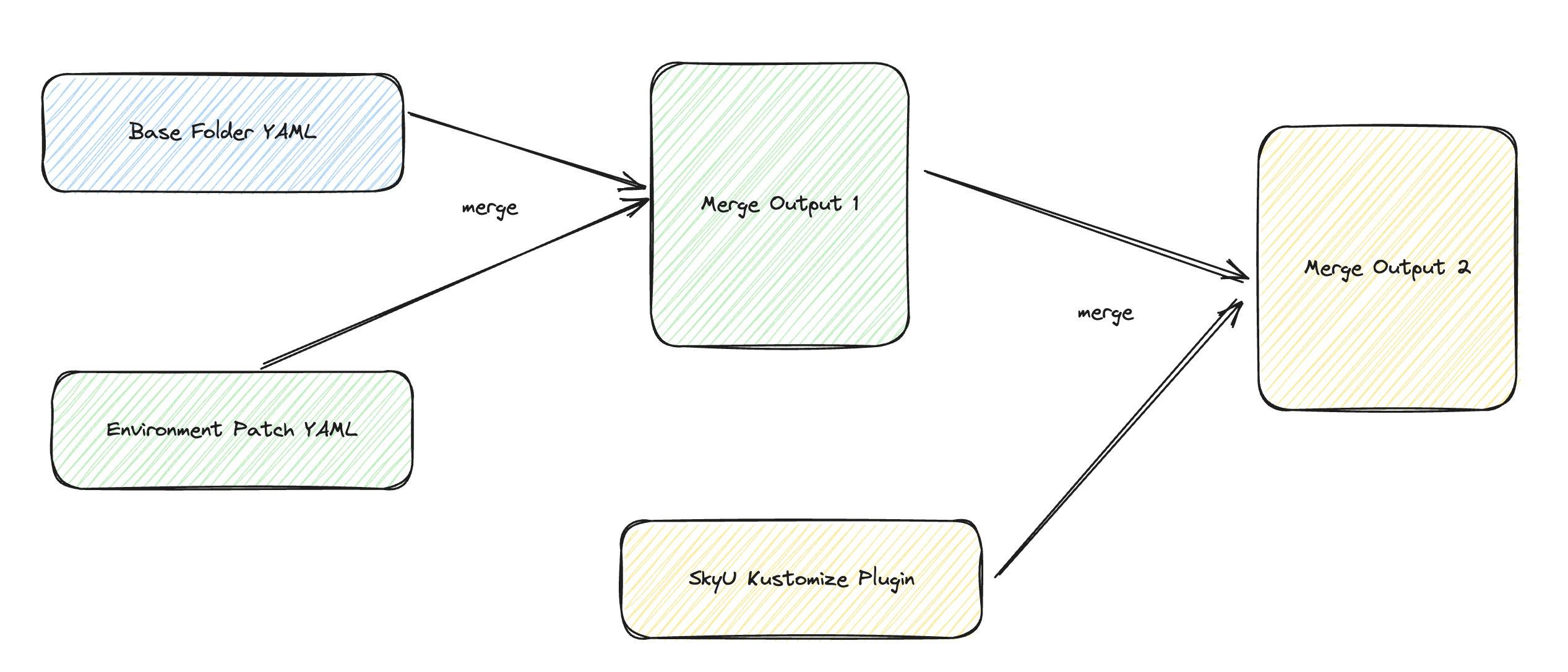

When you deploy an application or infrastructure in SkyU, SkyU merges the base and overlay folders using Kustomize. This allows you to customize the Kubernetes resources for different environments without duplicating the base Kubernetes manifests.

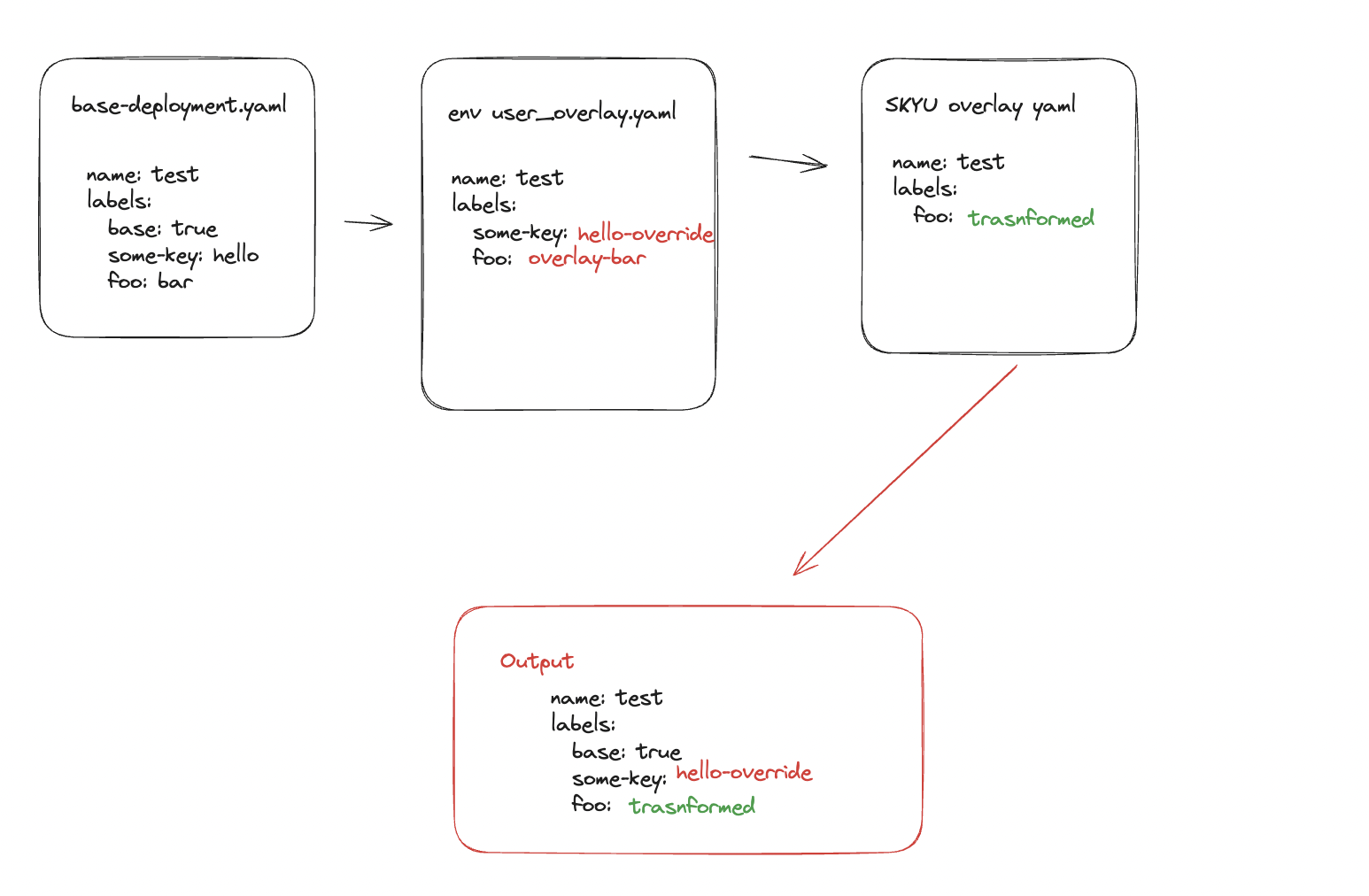

After the initial merge, it would go through another transform via a SkyU Kustomize transform plugin to add the necessary configurations for the SkyU platform to manage the resources.

The manifest spec for the skyu-transform plugin is as follows:

spec:
  type: string # Job, CronJob, Deployment
  applicationContainers:
    - name: string
      applicationPorts:
        - protocol: string
          port: 0
          targetPort: 0
          apiSpec:
            gitPath: string
            urlPath: string
      imageRegistry: string
      imageTag: string
      cpuRequestMili: 0
      cpuLimitMili: 0
      memoryRequestMb: 0
      memoryLimitMb: 0
      command:
        - string
      args:
        - string
      healthChecks:
        - initialDelaySeconds: 0
          timeoutSeconds: 0
          periodSeconds: 0
          successThreshold: 0
          failureThreshold: 0
          httpGet:
            path: string
            port: 0
            httpHeaders:
              - name: string
                value: string
            scheme: string
          tcpSocket:
            port: 0
          exec:
            command:
              - string
          grpc:
            port: 0
            service: string
          probeType:
            - string # readinessProbe, livenessProbe, startupProbe
      configMounts:
        - mountPath: string
          isFile: false
          configMapName: string
          secretName: string
          key: string
          isEnv: false
      imagePullPolicy: string
      credentialId: string
      imagePullSecretName: string
      commitDetails:
        commitHash: string
        commitTime: string
        commitUser: string
        commitMessage: string
        commitAvatar: string
  minReplicas: 0
  maxReplicas: 0 # default replica count
  terminationGracePeriodSeconds: 0
  nodeSelector:
    key: string
  serviceType: string # todo
  namespace: string
  cronTab: string
  suspend: false
  ttlSecondsAfterFinished: 0
  serviceAccountName: string
  name: string
  version: string
  labels:
    key: string
  horizontalAutoScalingRules:
    - ruleType: string # cpu, memory
      percentage: 0
  volumes:
    - name: string
      type: string
      pvc:
        claimName: string
        yamlFilePath: string
      hostPath:
        path: string
      nfs:
        server: string
        path: string
      volumeMounts:
        - containerName: string
          mountPath: string
