Node.js to AWS Lambda Function Deployment
This application type is designed to deploy your Node.js source code as an AWS Lambda function, enabling a serverless environment to handle your application logic with scalability and cost efficiency.
Application Features
- Application Overview: Deploy your Node.js source code as an AWS Lambda function using this template.
- Lambda Configs: The lambda configs are added when creating the lambda function.
- Pipelines: The Node.js application is built and packaged for deployment to Lambda.
- Security Scans: The code is scanned for vulnerabilities before deployment.
- Environment Variables: Configure Lambda-specific environment variables within the application settings.
Getting Started

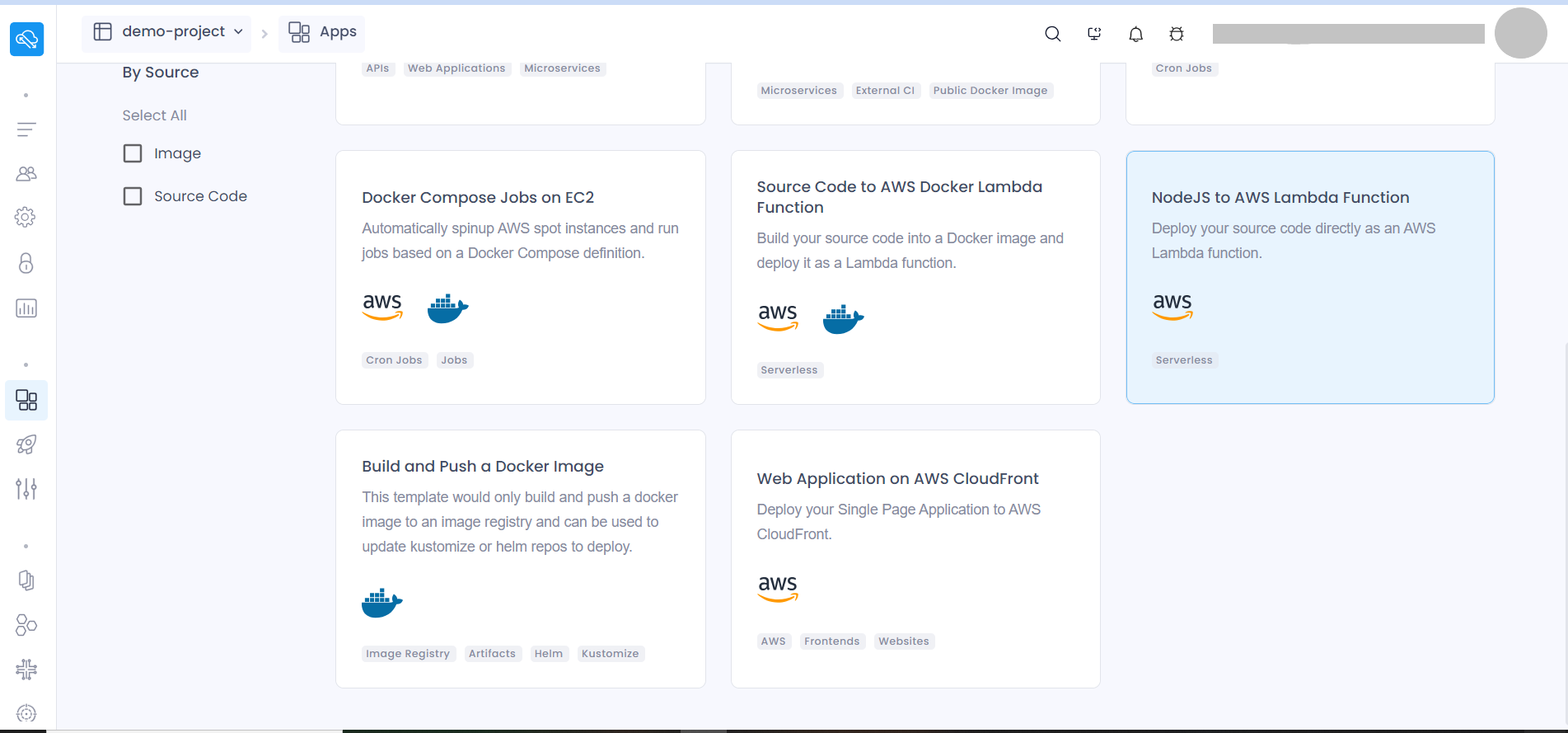

Choose Application Type
Navigate to the Applications section of your project. Click on the + Create Application button to create a new application. Select Node.js to AWS Lambda Function application type from the catalog.
Fill General Details
| Field | Description | Example |
|---|---|---|
| Name | Name of the Application. This has to be unique across your project and should not contain special characters. | nodejs-lambda-app |
| Description | Provide a meaningful description for your application | This is a Lambda function. |
Authenticate
This template needs the source code to build and deploy the application. Authenticate with GitHub to connect an existing repository for the application.
Select Repository
Select the GitHub repository containing your Node.js application code.
| Field | Description |
|---|---|
| Github Account | Your Github Organization / Account |
| Repository | The repository which holds the application code |
| Branch | Default branch for the repository. main is usually the default branch. Pipeline YAMLs will be stored here. |
Configure Pipeline Triggers
Set up the triggers for your deployment pipeline, including events such as push or specific branch updates.
| Field | Description | Default |
|---|---|---|
| On | Pipeline Trigger Event | push |
| Branches | Multiple inputs for branch names or a regex. (Optional) | main |
| Tags | Multiple inputs for tag names or a regex (Optional) | |
| Paths | To trigger on specific path changes in a repository (Optional) |
Each environment will have a different set of triggers. You can configure the triggers for each environment. Learn more in the Pipelines section.
Add Lambda configurations
Define any environment variables needed by your Lambda function. These variables will be securely stored and injected into the function at runtime.

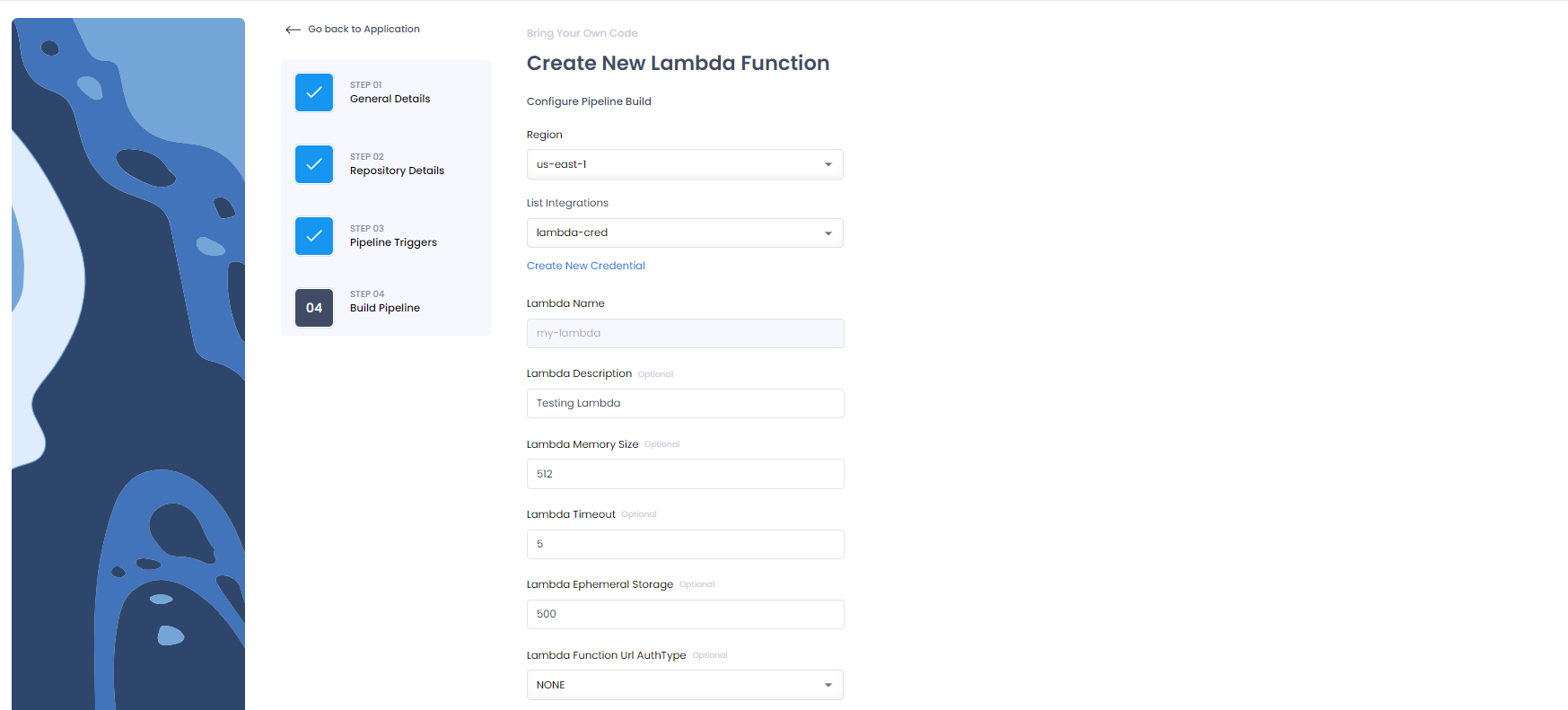

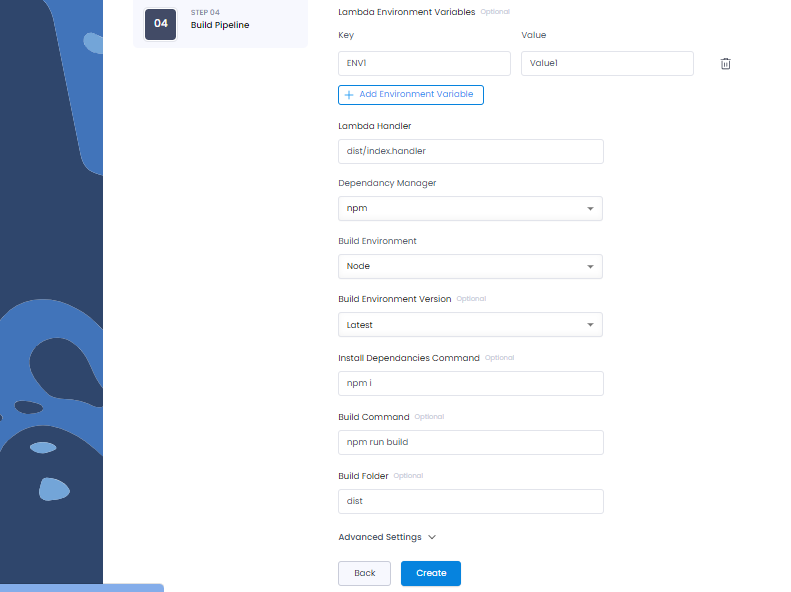

AWS Lambda Function Configuration
Provide the details for your Lambda deployment, including the runtime environment, handler, and memory allocation. Below are the fields with their descriptions and examples:
| Field | Description | Example |
|---|---|---|
| AWS Region | The region where your Lambda function will be deployed. | us-east-1 |
| List Integrations | Select or create a new credential to link your AWS account. | Create New Credential |
| Lambda Name | Provide a unique name for your Lambda function. | Test Lambda |
| Lambda Description | (Optional) Add a meaningful description for your Lambda function. | My test Lambda |
| Lambda Memory Size | Allocate memory (in MB) for the Lambda function. | 512 |
| Lambda Timeout | (Optional) Specify the maximum runtime duration (in seconds) for the function. | 5 |
| Lambda Ephemeral Storage | (Optional) Define storage space for the Lambda function. | 512 |
| Lambda Function URL Auth Type | (Optional) Select the authentication type for the Lambda function URL. | Select Function URL AuthType |
| Environment Variables | (Optional) Define key-value pairs for environment-specific configurations. | Add Environment Variable |
| Lambda Handler | Specify the entry point function for your application. | eg: dist/src/lambda.handler |
| Dependency Manager | Select the package manager used for your Node.js application. | npm |
| Build Environment | Choose the environment for building the application. | Select Build Environment |
| Build Environment Version | Select the version of the build environment. | |
| Install Dependencies Command | (Optional) Provide the command to install project dependencies. | eg: npm install |
| Build Command | (Optional) Add the command to build your application. | eg: npm run build |
| Build Folder | Specify the folder that contains your built application. | eg: build |

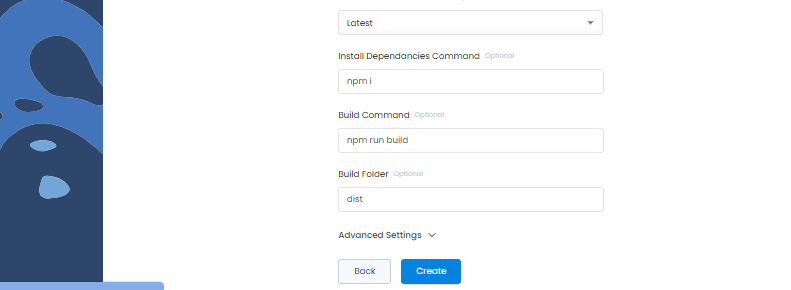

Create Application
Once you have filled all the details, click on the Create button to create the application.
